| Item | Description |

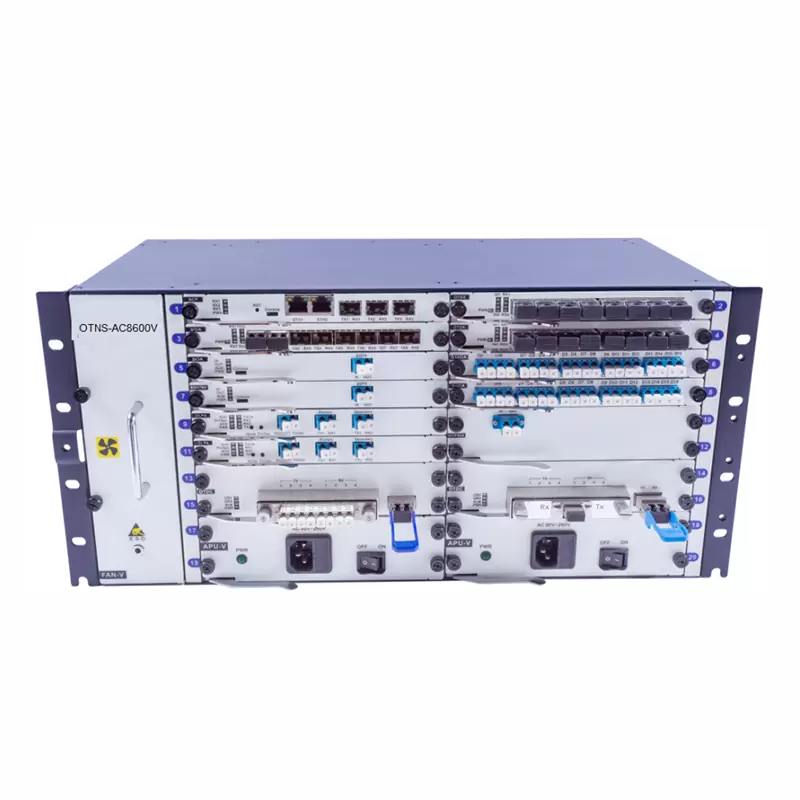

| Product model | OTNS-AC8600 V |
| Equipment size | 5U: 220 mm (height)×442 mm (width)×220 mm (depth) |
| Service slot | 16 slots (the network management card is optional for one of the slots) |
| Installation | 19 "standard cabinet installation |
| Working temperature range | -10℃～60℃ (typical) |
| Working humidity range | 5~95% without condensation |
| Storage temperature range | -40℃～85℃ |
| Heat dissipation | 1 fan card which supports hot-plugging |
| Power supply | 2 power cards, support AC 220 V or DC - 48 V power supply, single board optional, 1 + 1 hot backup |
| Power consumption | 450W (Maximum power consumption of full configuration) |
