40G QSFP+ SR4/SR BD/LR4/ER4/ZR4/EZR4

ACEC'S  40G QSFP+ optical transceivers family includes SR4, eSR4, IR4, LR4, ER4, and PSM LR4 with features of using LC/MPO interfaces, IEEE 802.3ba and SFF-8436 Compliant, low Power Consumption, Small Size and High-speed.


 These 40G QSFP+ transceivers are designed for extensive applications of Large Data Centers, Zone Network and Metro Network. Together with our MTP/MPO cables, and standard OM3/OS1 LC cables, the contribute to complete network connections.


PackagePart NumberData RateReachWavelengthTX outputRx Sensitivity (dBm)Power ConsumptionTemperature (deg C)Data Sheet
(m/km)(nm)(dBm)

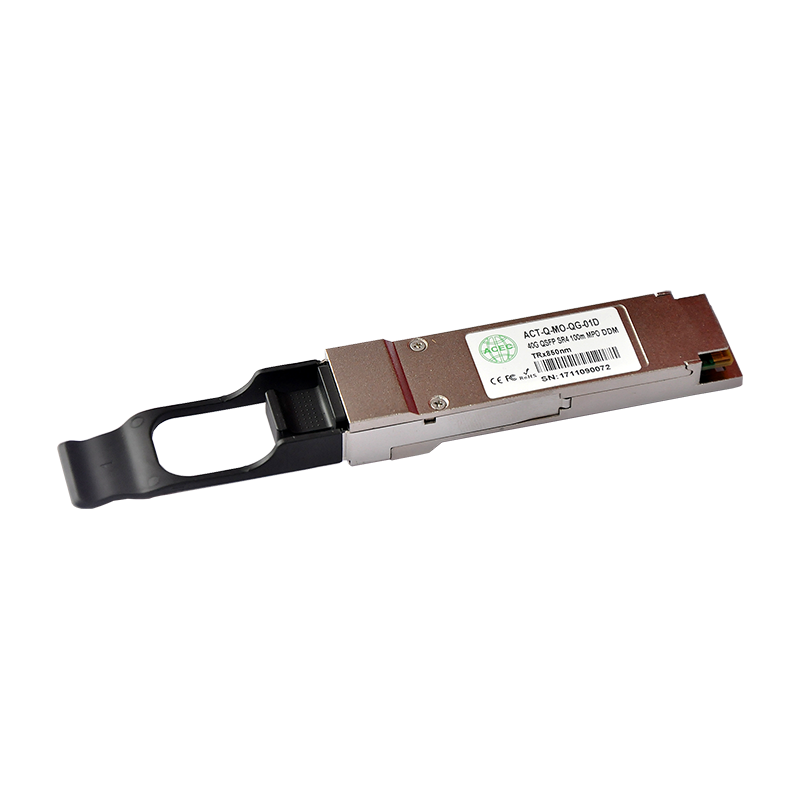

QSFP+ SR4ACT-Q-MP-QG-01D40G100m850-7.6~1-9.5<1.5w0~70

ACT-8-MP-HG-01D-V2.pdf

QSFP+ eSR4ACT-Q-MP-QG-03D40G300m850/900-7.3~1-9.9<1.5w0~70
QSFP+ SR BDACT-Q-DL-QG-01






ACT-Q-DL-QG-01D SRBD.pdf

QSFP+ IR4ACT-Q-DL-QG-06D40G2kmCWDM-7~2.3-11.7<3.5w0-70

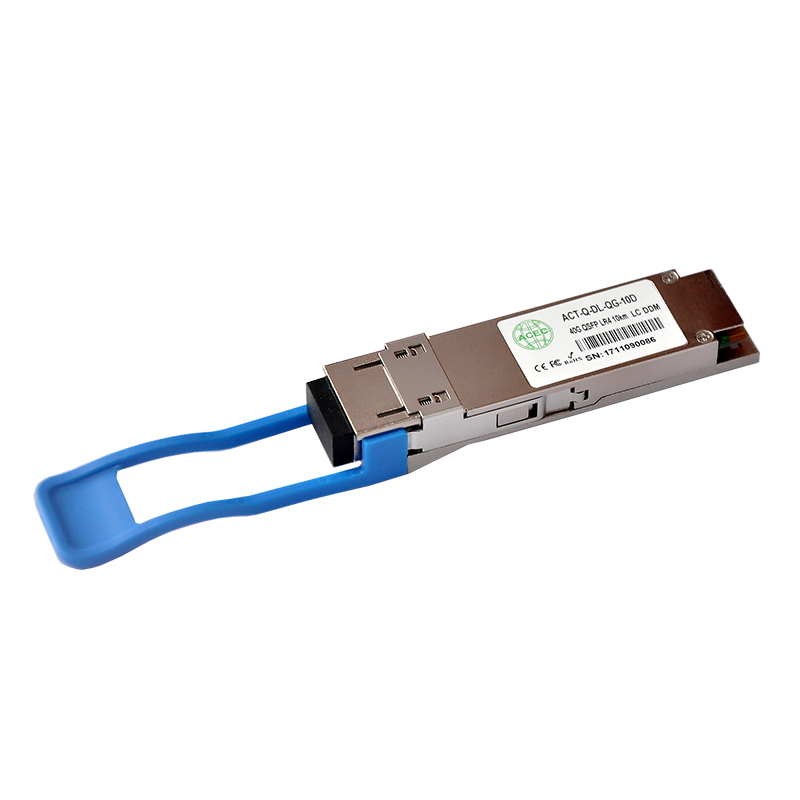

QSFP+ LR4ACT-Q-DL-QG-10D40G10kmCWDM-7~2.3-13.7<3.5w0~70

ACT-Q-DL-QG-10D LR4.pdf

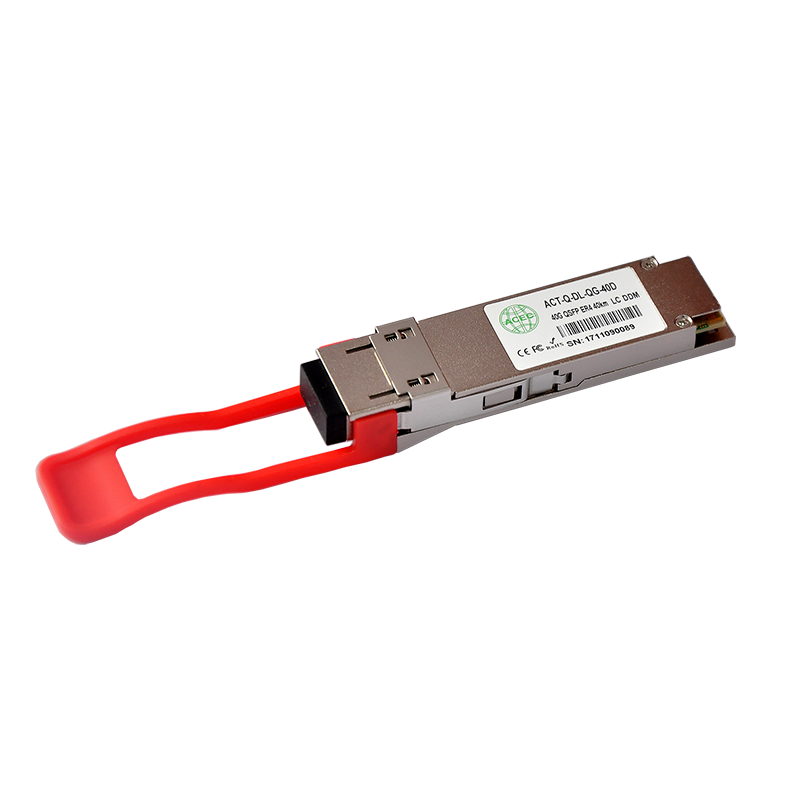

QSFP+ ER4ACT-Q-DL-QG-40D40G40kmCWDM-2.7~4.5-19<3.5w0~70

ACT-Q-DL-QG-40D ER4.pdf

QSFP+ PSM LR4ACT-Q-MP-QG-10D40G10km1310nm -5.5~1.5-12.6<3.5w0~70

ACT-Q-MP-QG-10D(QSFP+ LR4 PSM) Datasheet Rev1.2.pdf

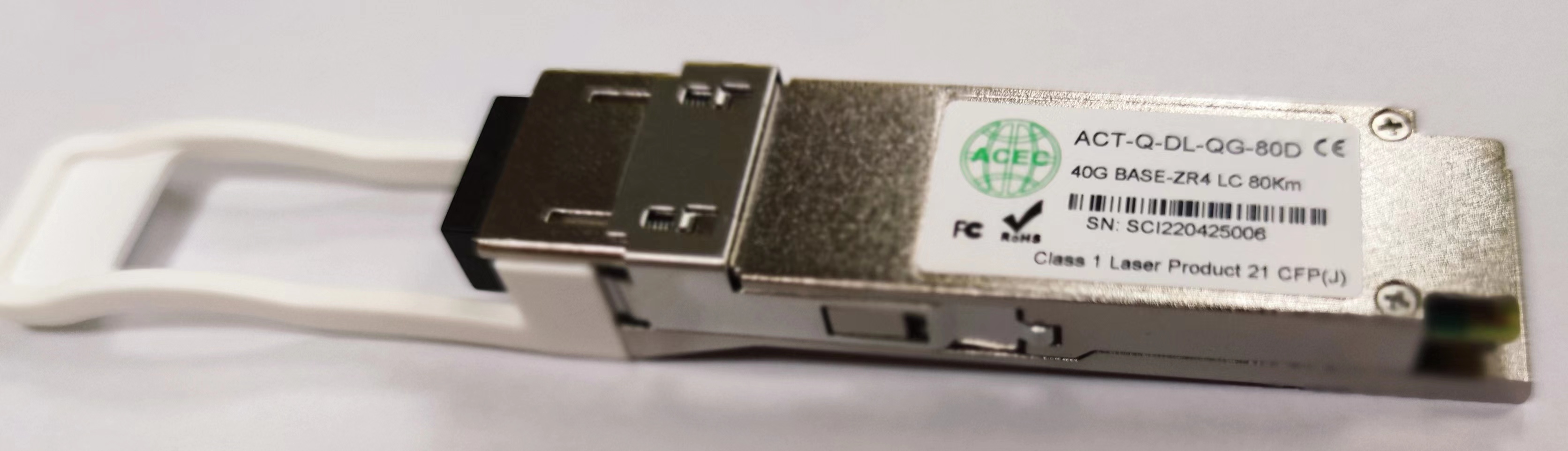

QSFP+ ZR4 ACT-Q-DL-QG-80D40G80kmLAN-WDM+4.0~+7.0< -26.0    <3.5w    0~70

ACT-Q-DL-QG-80D.pdf

QSFP+ EZR4ACT-Q-DL-QG-A0D40G100KmDWDM4   0~+5
< -24.0    <3.5w    0~70

ACT-Q-DL-QG-A0D.pdf
