ACEC has 25G SFP28 optical transceiver，covering SR, LR, ER,BiDi and LWDM, with the features of IEEE802.3by and SFF-8472 compliant, low power consumption, Small Size, High-speed and commercial and industrial working Temperature Range.
These 25G SFP28 with transmission rate up to 25.78Gbps are designed for for the application of data center, 5G networks, 25G Ethernet and fiber channel.
| Picture | Package | Part Number | Data Rate | Reach | Wavelength | TX output | RX Sensitivity | Power Consumption | Connector | Temp | Datasheet |
| (km) | (nm) | (dBm) | (dBm) |

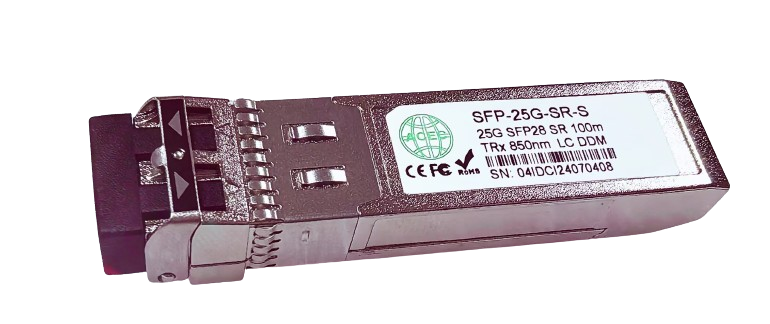

| 25G SFP28 SR | ACT-S-DL-DG-01D | 25G | 100m | 850 | -9.1～2.4 | -11 | <1W | LC | C |
|
| 25G SFP28 300m | ACT-S-DL-DG-03D | 25G | 300m | 1310 | -7 ～2 | -10 | <1.2W | LC | I | ACT-S-DL-DG-03D.pdf |
| 25G SFP28 LR | ACT-S-DL-DG-10D | 25G | 10km | 1310 | -5 ～2 | -10.6 | <1W | LC | I | ACT-S-DL-DG-10D.pdf |
| 25G SFP28 ER | ACT-S-DL-DG-40D | 25G | 40km | 1310 | -1.6 ～6 | -19.6 | <1.8W | LC | I | ACT-S-DL-DG-40D.pdf |

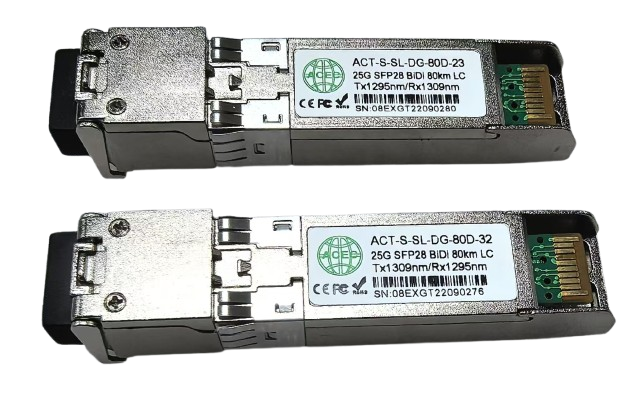

| 25G SFP28 Bidi LR | ACT-S-SL-DG-10D-23/32 | 25G | 10km | 1270/1330 | -5 ～2 | -18 | <1.2W | LC | I | ACT-S-SL-DG-20D-32.pdf ACT-S-SL-DG-20D-23.pdf |
| 25G SFP28 Bidi ER | ACT-S-SL-DG-30D-23/32 | 25G | 30km | 1270/1330 | 0 ～5 | -13.3 | <1.4W | LC | I | ACT-S-SL-DG-30D-2332.pdf |
| 25G SFP28 CWDM | ACT-S-DL-DG-20D-xx | 25G | 20km | 1271~1331 | -4 ～2 | -11 | <1W |
|
|
|
| 25G SFP28 LWDM | ACT-S-DL-DG-40D-xx | 25G | 40km | LWDM | -1.6 ～6 | -19 | <1.8W | LC | I |
|
