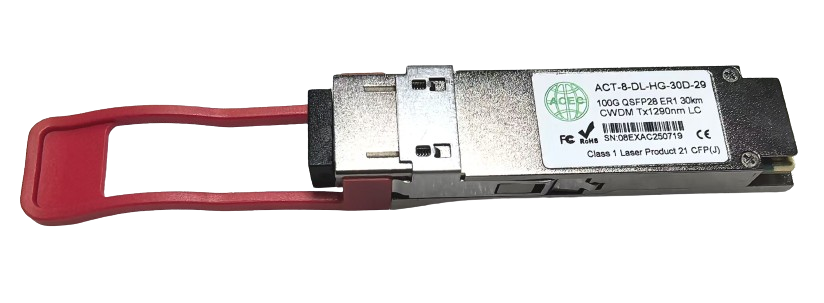

100G QSFP28 SR4/LR4/ER4/ZR4/eZR4

ACEC's 100G QSFP28 optical transceivers include SR4, CWDM4, CLR4, PSM4, LR4, ER4 Lite. ZR4 and ZR4 plus 100km series. These 100G QSFP28 use MPO or LC connectors, with the features of IEEE802.3bm, SFF-8636 and MSA Compliant, Low Power Consumption, Small Size and High-speed. The 100G QSFP28 are mainly designed for applications of Metro network, 100G Data Center connection and OTN networks. They will work with our MTP/MPO cable and standard OM3/OM4/OS1 patchcords to make full connections.

Package	Part Number	Data Rate	Reach	Wavelength	TX output	RX Sensitivity	Power Consumption	Interface	Temp	Datasheet
Package	Part Number	Data Rate	(km)	(nm)	(dBm)	(dBm)	Power Consumption	Interface	Temp	Datasheet
100G QSFP28 SR4	ACT-8-MP-HG-01D	100G	150m	850	-8.4～2.4	-10.3	<2W	MPO	C	ACT-8-MP-HG-01D-V2.pdf
100G QSFP28 PSM4	ACT-8-MP-HG-06D	100G	2km	1310	-6.0～2.0	-10.1	<3.5W	MPO	C	ACT-8-MP-HG-06D(PIR4).pdf
100G QSFP28 CWDM4	ACT-8-DL-HG-06D	100G	2km	CWDM	-6.5～2.5	-10	<3.5W	LC	C	ACT-8-DL-HG-06D(QSFP28 CWDM4).pdf
100G QSFP28 LR4	ACT-8-DL-HG-10D	100G	10km	LAN WDM	-4.3～4.5	-10.6	<3.5W	LC	C	ACT-8-DL-HG-10D.pdf
100G QSFP28 eLR4	ACT-8-DL-HG-20D	100G	20km	LAN WDM	-4.3～4.5	-11.5	<3.5W	LC	C	ACT-8-DL-HG-20D.pdf
100G QSFP28 ER4 Lite	ACT-8-DL-HG-30D	100G	30km	LAN WDM	-2.5～4.5	-18.5	<4W	LC	C	ACT-8-DL-HG-40D.pdf
100G QSFP28 ER4	ACT-8-DL-HG-40D	100G	40km	LAN WDM	-2.0~4.5	-19	<4W	LC	C	ACT-8-DL-HG-40D.pdf
100G QSFP28 ZR4	ACT-8-DL-HG-80D	100G	80Km	LAN WDM	1~6.5		<6.5W	LC	C	ACT-8-DL-HG-80D.pdf

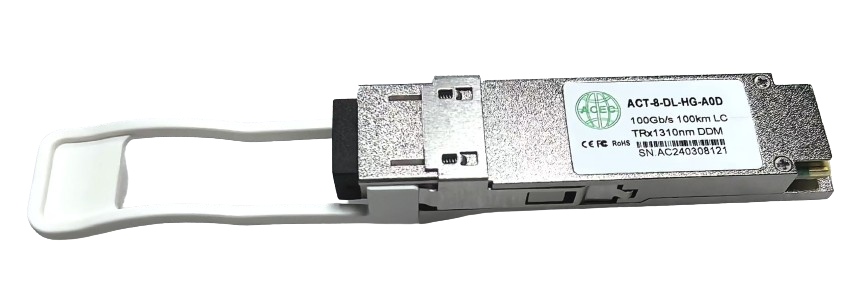

100G QSFP28 eZR4	ACT-8-DL-HG-A0D	100G	100Km	LAN WDM	+3~+6.5		<6.5W	LC	C	ACT-8-DL-HG-A0D.pdf
100G QSFP28 DWDM single wave	ACT-8-DL-HG-80D-Dxx	100G	80Km	DWDM	-3~4	-12	<4W	duplex LC	C	ACT-8-DL-HG-80D-Dxx.pdf
100G QSFP28 DWDM two waves	ACT-8-CS-HG-80D-Dxxxx	100G	80Km	DWDM	-1~+4	-12	<4W	CS	C	ACT-8-CS-HG-80D-Dxx.pdf
100G QSFP28 DR PAM4	ACT-8-DL-HG-05D	100G	500m	1310nm	-2~+4	-10	<4W	LC	C	ACT-8-DL-HG-05D(DR1 PAM4).pdf
100G QSFP28 BiDi 10km	ACT-8-SL-HG-20D-23/32	100G	10km	1271/1331	-1.4~+4.5	-6.1	<4.5W	LC	C	ACT-8-SL-HG-10D-2332.pdf
100G QSFP28 BiDi 20km	ACT-8-SL-HG-20D-23/32	100G	20km	4WDM	-4.3~+4.5	-14.5	<5.5W	LC	C	ACT-8-SL-HG-20D-2332.pdf
100G QSFP28 BiDi 30km	ACT-8-SL-HG-30D-04	100G	30km	1304.58	0~+5.6	-14.7	<4.5W	LC	C	ACT-8-SL-HG-30D-04.pdf
100G QSFP28 BiDi 30km	ACT-8-SL-HG-30D-09	100G	30km	1309.14	0~+5.6	-14.7	<4.5W	LC	C	ACT-8-SL-HG-30D-09.pdf
100G QSFP28 BiDi 40km	ACT-8-SL-HG-40D-04	100G	40km	1304.58	+1.7~+7.1	-16	<4.5W	LC	C	ACT-8-SL-HG-40D-04.pdf
100G QSFP28 BiDi 40km	ACT-8-SL-HG-40D-09	100G	40km	1309.14	+1.7~+7.1	-16	<4.5W	LC	C	ACT-8-SL-HG-40D-09.pdf

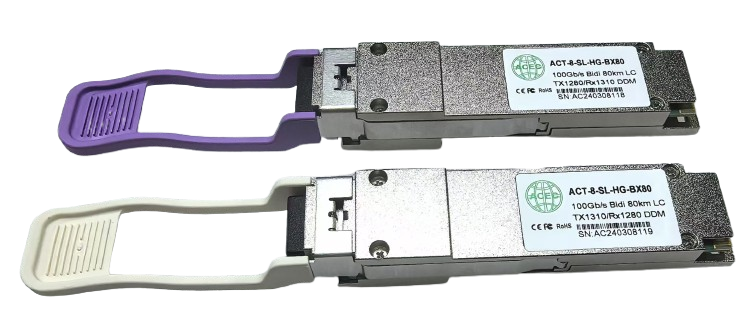

100G QSFP28 BiDi 80km	ACT-8-SL-HG-80D-43	100G	80km	1273.54, 1277.89, 1282.26, 1286.66	+2~+6.5dB	-28	<5W	LC	C	ACT-8-SL-HG-80D-4.pdf
100G QSFP28 BiDi 80km	ACT-8-SL-HG-80D-45	100G	80km	1295.56, 1300.05, 1304.58, 1309.14	+2~+6.5dB	-28	<5W	LC	C	ACT-8-SL-HG-80D-4.pdf
100G QSFP28 CWDM 10km	ACT-8-DL-HG-10D-xx	100G	10km	1270/1290/1310/1330	-1.4~+4.5		<4.5W	LC	C	ACT-8-DL-HG-10D-xx.pdf
